Re-inventing Physical Security
Traditional surveillance systems record passively, requiring business owners or facility managers to parse through hours of analog footage after the damage is already done. This project presents a radical shift from passive observation to active disruption and immediate notification.

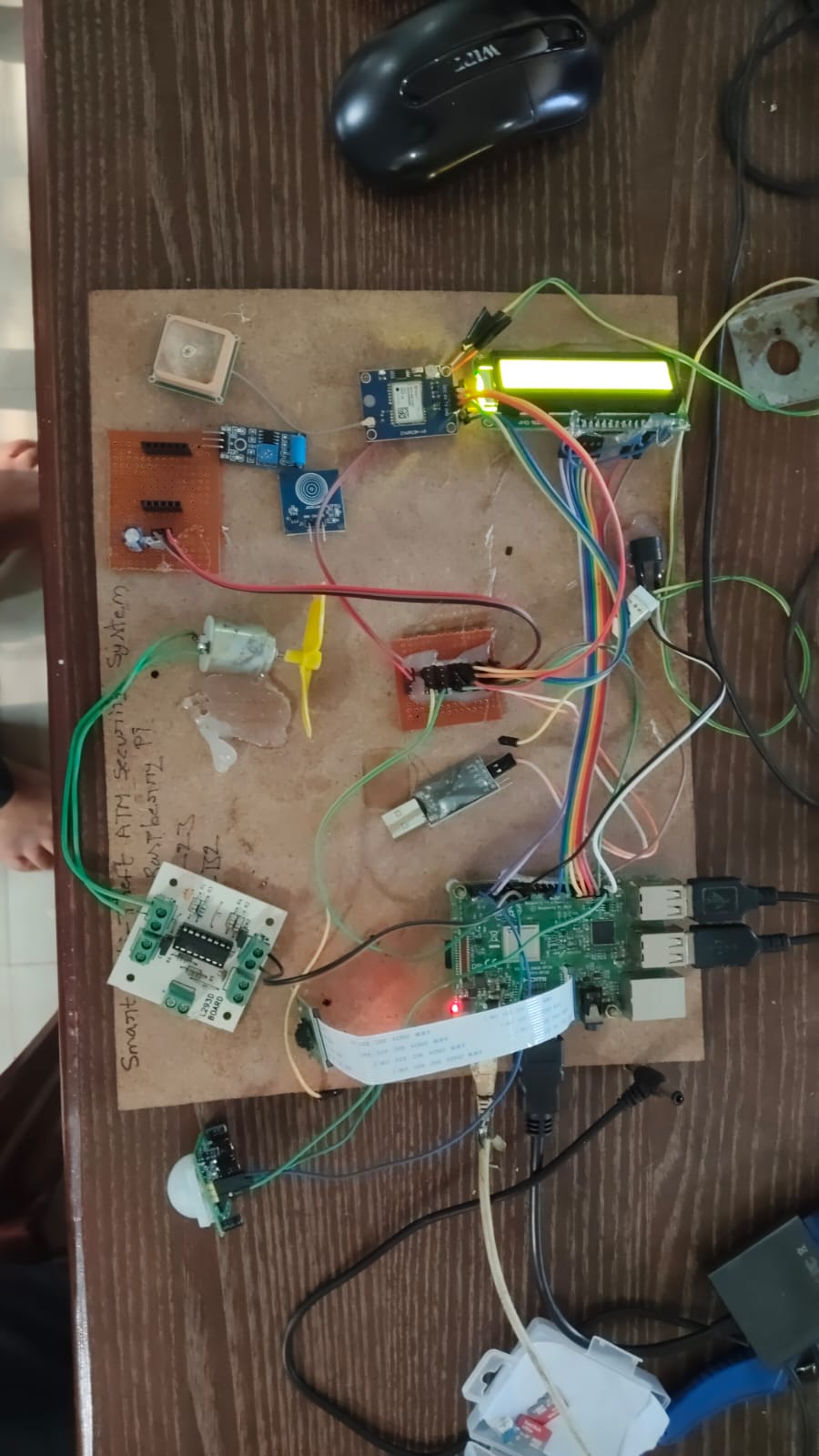

Powered by the compact logic architecture of the Raspberry Pi 3, this comprehensive Intruder Detection System offers an inexpensive yet highly sophisticated alternative. The unique combination of instantaneous software triggers and hardware deterrence allowed this project to secure an official patent and be extensively featured in published research papers.
How It Works: The Detection Phase

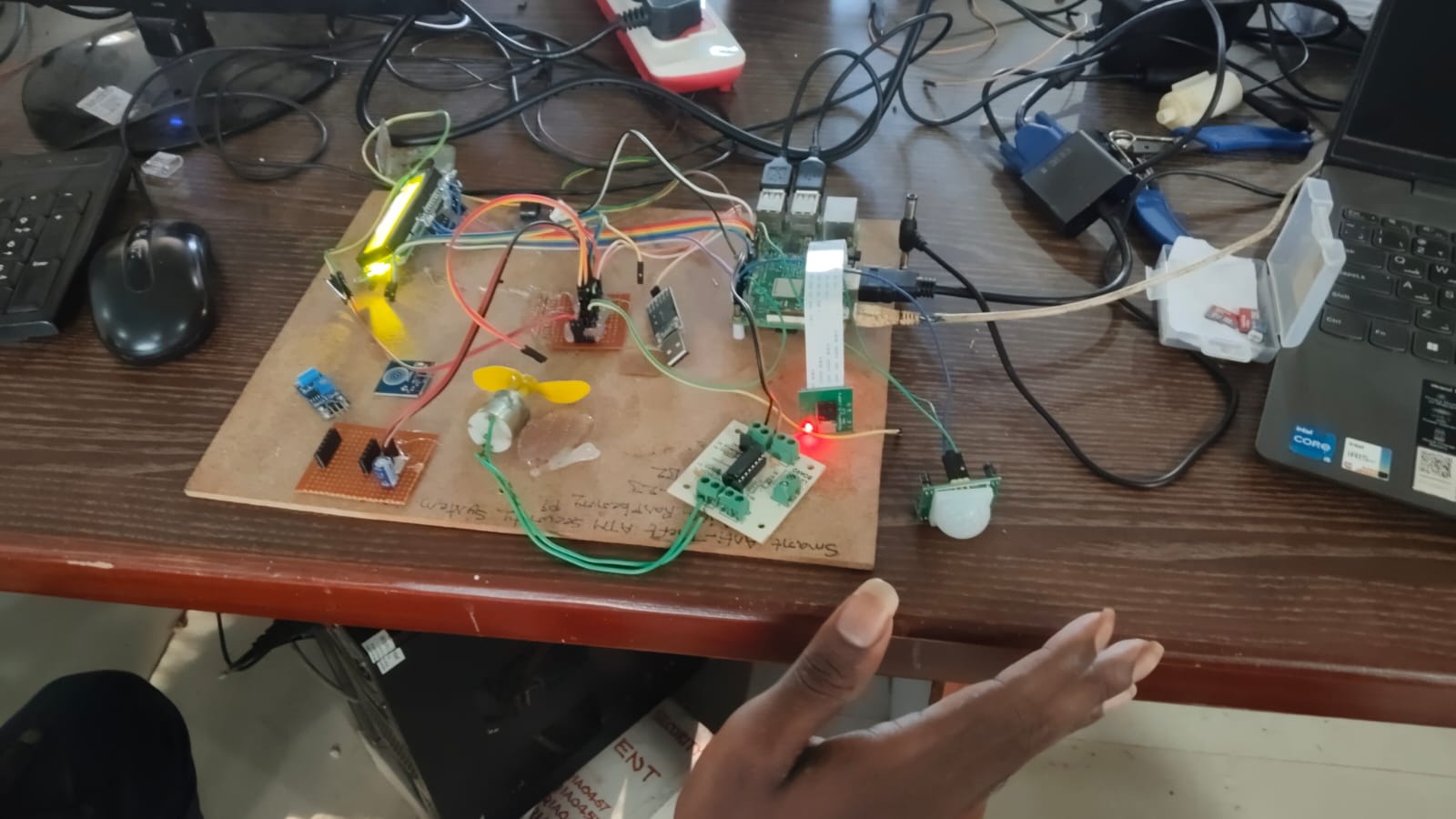

The central nervous system of the project operates heavily on an array of specially calibrated PIR (Passive Infrared) sensors spanning the secure perimeter.
Unlike standard cameras that can be tricked by light changes or shadows, PIR sensors measure exact disruptions in the infrared heat signatures radiating around them. The moment a human crossing occurs, the voltage signal spikes directly into the Pi's GPIO pins, instantly interrupting its idling state.
The Deterrence & Alert Phase
Triggering the sensor initiates four cascading actions running entirely in parallel:
- Visual & Audio Deterrence: A high-decibel warning buzzer is forcefully engaged via an external relay to disrupt the intruder simultaneously.
- On-Site Status Monitoring: Current system status and alert protocols are pushed immediately to an attached LCD screen interface to maintain a hardware-level log.
- Image Acquisition: The Pi's integrated Camera Module snaps high-fidelity snapshots focused directly along the crossing grid where the infrared threshold was breached.
- Geolocation Alerting Engine: Leveraging an external GPS module alongside SMTP email logic, the system bypasses standard notifications.
Real-Time Email Validation

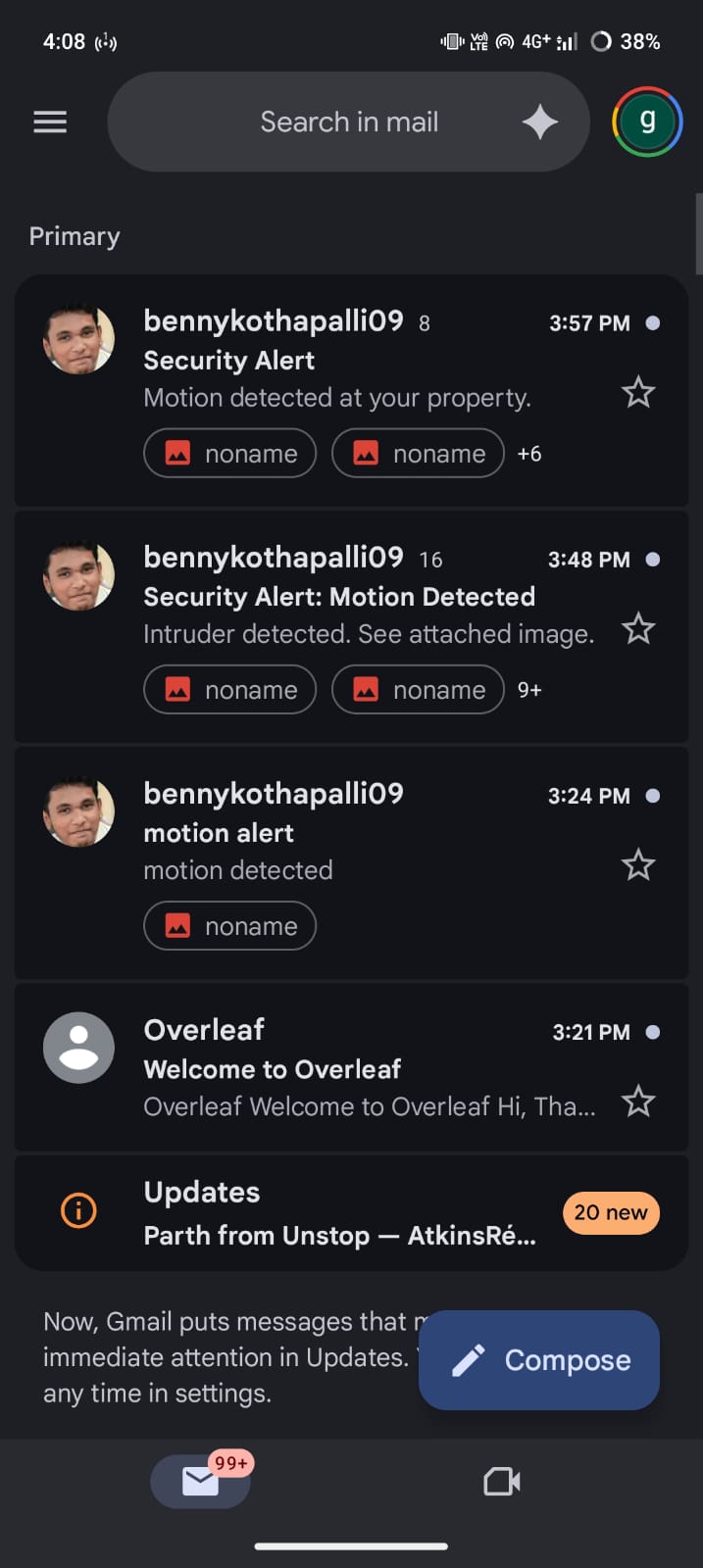

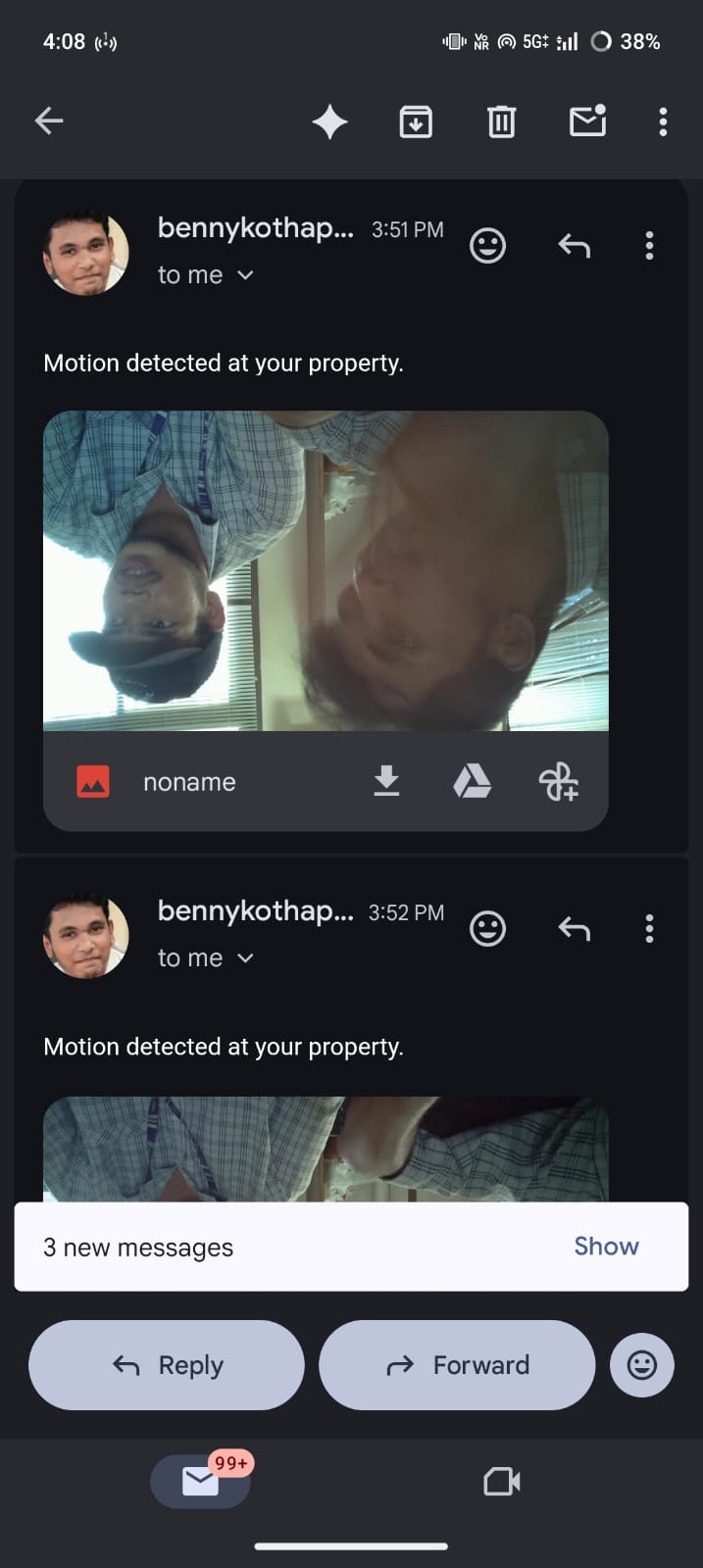

As shown in the logs above, the user instantly receives an inbound Security Alert detailing the precise time of the breach. Attached dynamically to the email is both the raw photograph taken by the motion-triggered camera, and the exact longitudinal/latitudinal GPS coordinates from the onboard module—providing actionable data anywhere in the world.
Why This System Defeats Traditional Alarms
By combining motion triggers with immediate off-site data caching (via emails), an intruder destroying the physical system post-discovery fails to destroy the evidence. The snapshot and coordinates are already transmitted through the wireless infrastructure seconds before the physical unit can be compromised. This specific architectural flow solidified the basis of our published research.
